TREND LOCK/JIG LOCK JIG FOR SASH AND MORTICE LOCKS
ECA Expert Says...
Other sizes of template available to special order, please contact Trend Technical Support for more information.

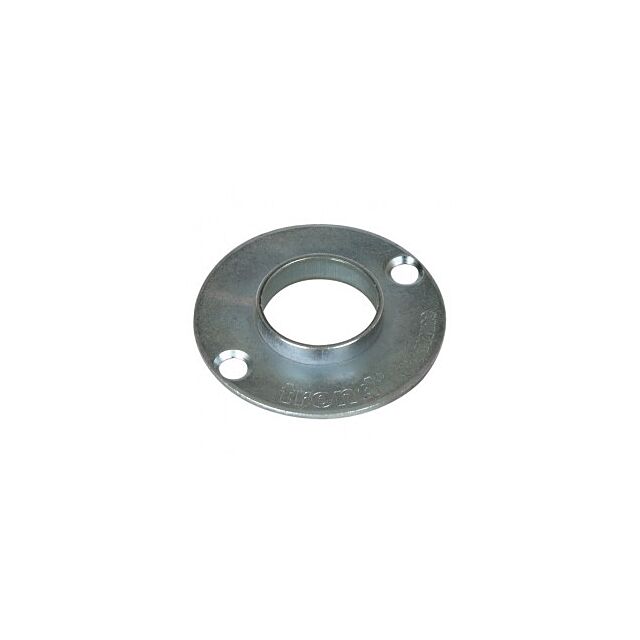

Trend LOCK JIG Lock Recessing JigThis jig uses a set of interchangeable templates & with a router will cut the mortise & face-plate recess for popular door locks. For most common sash mortises & dead locks, with up to 3 inch deep mortises & a 7/8 inch or 1 inch face-plate. Deeper mortises can be achieved with a suitable size of auger bit. Fast, clean & accurate results on doors 34mm to 58mm thick, even in hardwood. Steel plates & body. The jig requires a plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter.
Door thickness min.= 34 mm
Door thickness max.= 58 mm
Includes templates for locks having the following face-plate dimensions: Imperial (Metric)= Template 7/8"x 1/8" (22.2x156 mm)= 1
7/8"x 6 " (22.5x152.5 mm)= 2
1"x 4 3/4" (25.4x121 mm)= 3
1"x 5" (25.4x127.5 mm)= 4
1"x 5 1/4" (25.4x133.5 mm)= 5
1"x 5 3/4" (25.4x145 mm)= 6
1"x 6" (25.4x153 mm)= 7
1"x 6" (25.4x156.5 mm)= 8
1"x 6 1/2" (25.4x165.5 mm)= 9
1"x 7" (25.4x177 mm)= 10
1"x 2 1/4" (25x57.5 mm)= 11 UPPER
1"x 2 1/4" (26x56.5 mm)= 11 LOWER
1"x 6 3/8" (25.6x162mm= 12
Mortise Dimensions Imperial (Metric)= Template 5/8" x 2 7/8" (16x72 mm*+)= A
5/8" x 4 1/4" (16x107 mm*)= B
3/4" x 3 1/8" (19x78 mm*)= C
3/4" x 4 1/4" (19x109 mm*)= D

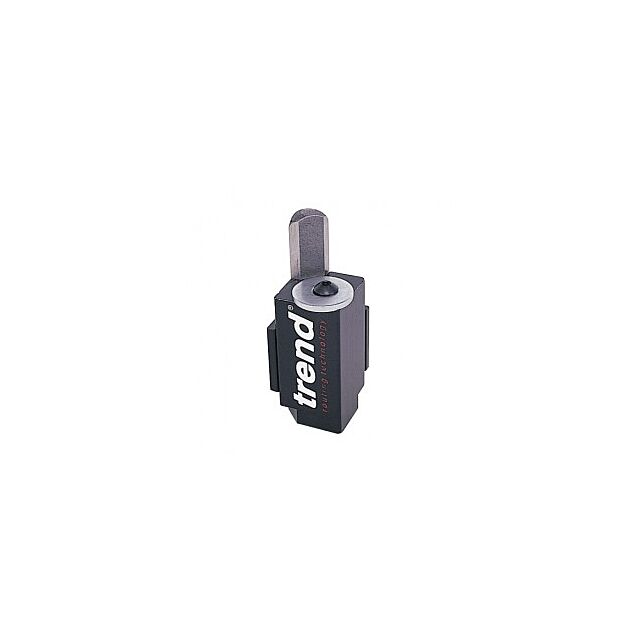

*These are maximum mortise length, unless radius ends are squared with a chisel. +Note:actual size of mortise 16x79 mm (5/8" x 3 7/64")
