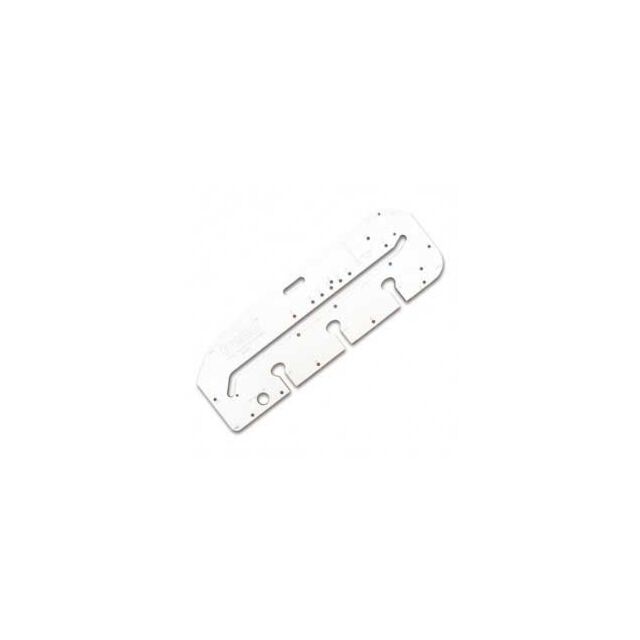

TREND KWJ900P PRO WORKTOP JIG FOR MULTI MATERIAL 900MM

The TREND KWJ900 is a 900mm pro multi-material worktop jig made for use with ½" routers. This jig is made up of 6 detachable parts which means the jig can go from 900m to 750mm and 435mm, as well as being dethatched for easy storage and transport. This worktop jig is designed for quick and easy routing, with quick set up and easy cutting. This jig features five back set options – 3, 5, 10, 24 and 35mm for use with new worktop materials and depths, and new worktop edge profiles, designs and trends. The front edge setting means that all the settings are done from the front edge, therefor eliminating any scribing errors.

Features and benefits:

Can be made into a 900, 750 and 435mm jig

Built in unique easy set reference window for quick and easy set up for any basket

Recessed clamp positions for low profile plunge saw clamps giving unrestricted router movement

Setup indicators carved into the surface for easy identification

Capable to be set up and complete a full male and female cut in under 15 minuets

Flush edge compatibility allows worktops to be cut flush with door faces

Connector bolt component for compact double bolt recess and 35mm tap hole/hinge recess

Specification:

Length – 900mm

Worktop range – 150-900mm

Weight – 5.4kg
