IMEX 188GRX10 ROTATING GREEN LASER - STAFF TRIPOD RECEIVER
ECA Expert Says...
- The Imex rotating laser level range is designed by industry professionals and tested in various conditions to ensure efficient and accurate performance for a wide range of leveling tasks.
- The range offers versatile capabilities including self-leveling, grade slope function, scan mode, horizontal and vertical, remote controller, and rechargeable Lithium-Ion batteries, making it an excellent value for construction functions.
- The laser level is housed in a robust, water and dust-proof case, and features a sensor-based self-leveling system, simplified design, and reduced calibration and service requirements. The package includes LRX10 detector, batteries, charger, remote control, target plate, hard carry case, SJA30F tripod, and 5-meter staff.
IMEX I88G 600M RANGE ROTATING GREEN LASER LEVEL KIT INC 2X 9.0AH BATTERIES, STAFF, TRIPOD, CHARGER, DETECTOR, TARGET PLATE & CARRY CASE
The Imex rotating laser level range has been specified by our construction trained team, designed by industry professionals and proven in all conditions to perform a vast range of levelling tasks in an efficient and accurate manner.
With self-levelling, grade slope function, scan mode, horizontal and vertical, remote controller and re-chargeable Lithium-Ion batteries, the Imex range represents excellent value with versatile capabilities for a full range of construction functions.
Combined with this is the highly visible heavy duty and robust water and dust-proof case, with a fully enclosed laser diode for years of trouble-free use.
A sensor based self-levelling system utilising a level sensor and stepping motor gives excellent levelling ability and enhanced accuracy.
The simplified design elements and robust componentry also mean reduced calibration and service requirements.

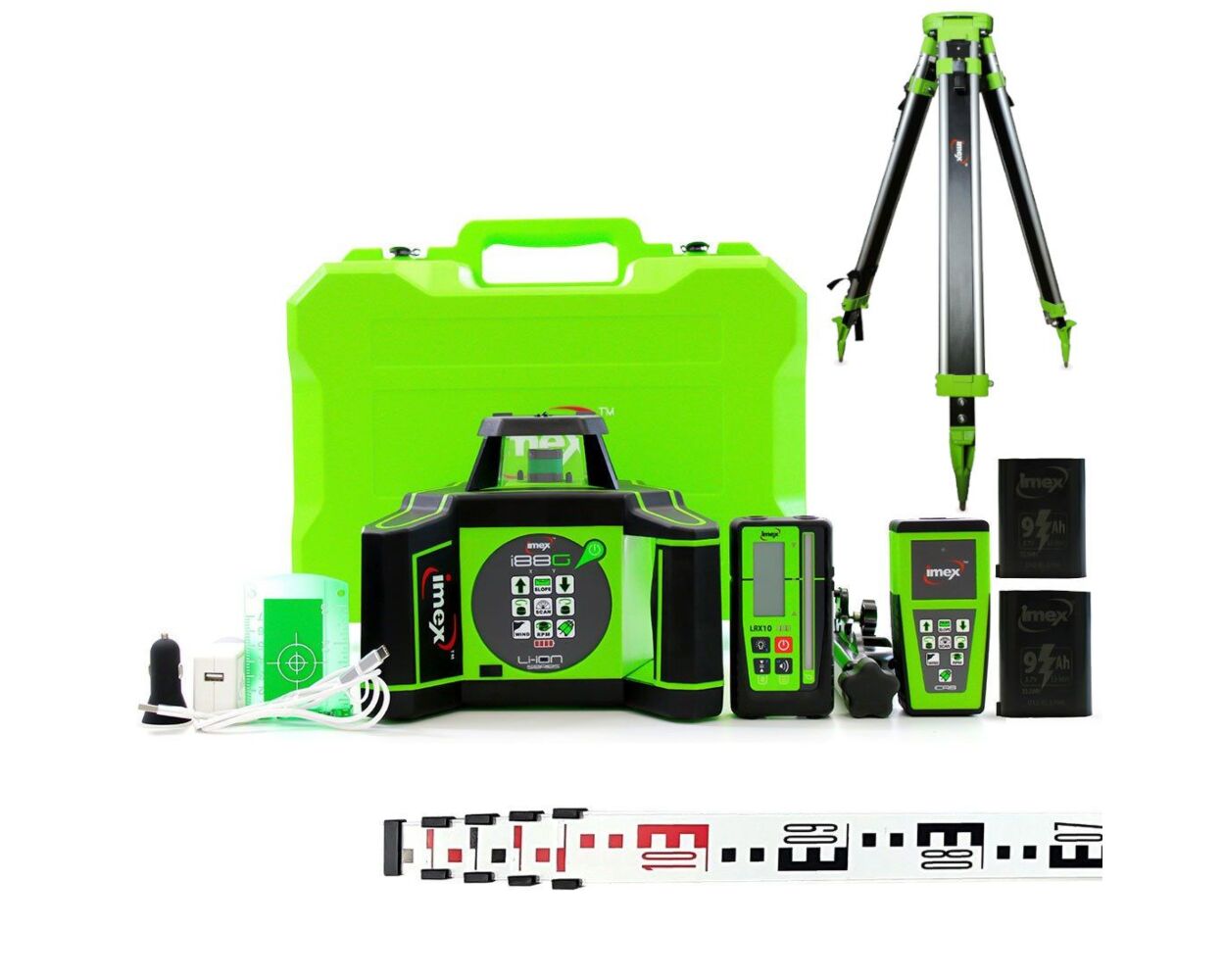

This laser is supplied with an LRX10 detector, 2x 9.0Ah batteries, car charger, USB cable, remote control unit and target plate in a hard carry case, plus a SJA30F tripod and 5 metre staff.
I88G ROTATING LASER
FEATURES:
Includes two 9Ah lithium-ion batteries
USB quick charge port with car charger
Scan Mode – Allows for part beam rotation in selected working environments
Plumb Spot – Top and bottom plumb spot beam to assist in set ups over a point
Remote Control Panel – allows grade or other functions to be carried out up to 20 m away from the instrument
Horizontal and vertical self levelling
Range of 600m range
Dual manual grade slope
Accuracy – +/- 1.5mm @ 30 metres for excellent results every time
Dual Grade – Grade slope to 5° (8.8%) in two directions, X and Y axis
SPECIFICATIONS:
Self Levelling: ±5°
Function: Horizontal/Vertical
Accuracy: 1.5mm @ 30m
Working Distance: 600m Diameter
Scan Mode: Yes - 0°, 10°, 45°, 90°, 180°
Rotation Speed: 0, 60, 120, 300, 600 rpm
Slope Mode: Yes - Single Manual Grade to 5° / 8.8%
Light Source: 535nm Class II Green Laser Diode
IP Rating: IP66
Power: 9.0Ah 3.7v Lithium-Ion
Detector: LRX10 Double Sided
Remote Control: iCR8
Working Time (Continuous Use): Approx. 24 Hours
Charging Time: 4 Hours
Detector Pick Up: 90mm / -30mm to +60mm
Detector Reading: Ultrafine: 0.5mm / Fine – 1.0mm / Medium – 2.0mm / Course – 5.0mm / Ultra Course: 10.0mm
Detector Power: 1-AA > 50 Hours Run
Laser Weight: 2.48 kg
LRX10 RECEIVER
FEATURES:
90mm detection range
Digital display and readout
LED indication
Loud/soft beeper
Increment adjust
Backlit display
IP67 waterproof resistance
Magnetic topface
Supplied with a heavy duty bracket
Sealed battery compartment
SPECIFICATIONS:
Detection Window: 90mm / -30 to +60
Working Range: 300m Radius
Detectable Spectrum: Red & Green Laser
Measurement Accuracy: Ultrafine - 0.5mm / Fine - 1.0mm / Medium - 2.0mm / Coarse - 5.0mm / Ultra Coarse - 10.0mm
Magnets: 2x Topface
Drop Test On Concrete: 1.5m Height
IP Resistance: IP67
Warranty: 3 Years
Weight: 0.5 kg
AXIS 5M STAFF
FEATURES:
5m 5-section aluminium telescopic survey measuring staff
Use for all general levelling and survey work
The rear face is marked in millimeters as a height rod
For use with a laser detector when used with a rotating laser, or a line laser or with an automatic dumpy level
Supplied with storage bag
SPECIFICATIONS:
Material: Aluminium
Length: 5 Metres
Part Numbers: AX-STME5 / 012-IMELS5
SJA30F TRIPOD
This SJA30F (Flat Top) heavy duty aluminium survey tripod is built tough for any site laser / theodolite setup or levelling task with a 5/8" thread. The most popular rotating laser tripod in Imex's range due to its high quality and lightweight design.
FEATURES:
Velcro leg strap & handle
Metal die cast powder coated components
Leg clamp lock
Zero wear sliding legs
Lightweight aluminium profile
SPECIFICATIONS:
Material: Aluminium
Max Height: 1.6 - 1.7 Metres
Thread: 5/8"
COMES WITH:
1x i88G Rotating Laser
2x 9.0Ah Lithium-Ion Batteries
1x LRX10 Detector
1x SJA30F Tripod
1x 5 Metre Staff
1x USB Cable
1x Remote Control Unit
1x Car Charger
1x Target Plate
1x Hard Carry Case
