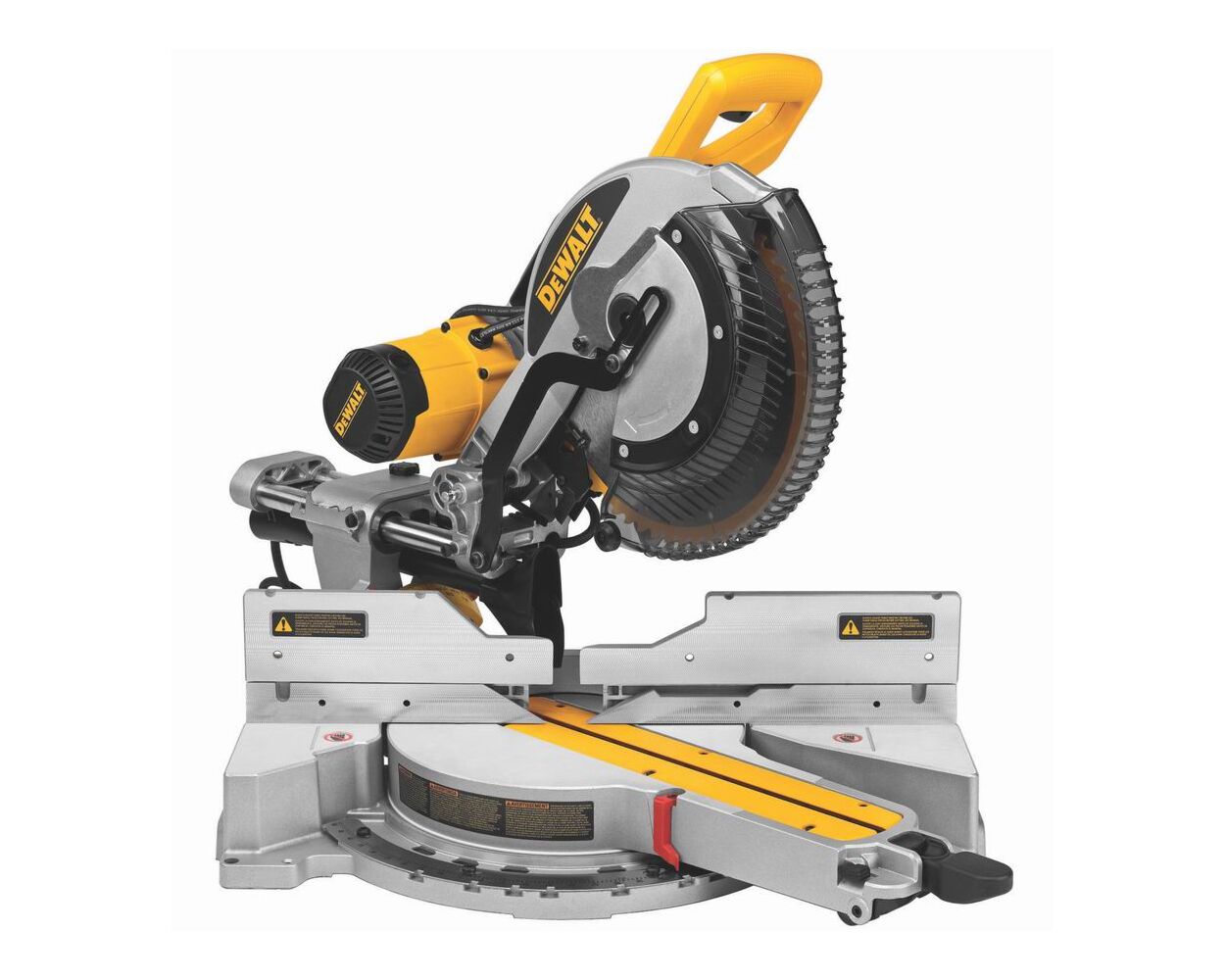

DEWALT DWS780 MITRE SAW 110V
ECA Expert Says...
The DWS7801 sliding compound, double bevel mitre saw comes with a 305mm blade and is capable of cuts 110mm in depth. Its “shadow line” laser technology makes it one of the most accurate saws on the market.
The Dewalt DWS780 is a powerful 305mm compound slide mitre saw offering intense cutting performance for big cuts and also accurate small cuts. The XPS shadow line cut indicator highlights the cut line on the material to give an accurate representation before touching the material.
Features and benefits:
Grooving stop allows adjustment of cutting depth for grooving rebating applications
Electronic speed control allows a change in cutting speed when cutting materials other than wood
Brilliant dust control keeps a clean cutting surface
Lightweight compact design allows easy transport while still having all the power needed
Built in quick release bevel allows easy adjustment or angles up to 48° in both directions
Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 320 mm wide
Large dual sliding fence allows easy access when cutting bugger materials
Specification:
Voltage – 110/240v
Weight – 24.8kg
Height – 396mm
Length – 770mm
Depth – 470mm
Max depth of cut – 170mm
Power Input - 1675 Watts
Power Output - 960 Watt
Blade Speed - 1900 - 3800 rpm
Blade Diameter - 305 mm
Blade Bore - 30 mm
Bevel Capacity - 49/49 °
Mitre Capacity [right/left] - 60/50 °
Cutting Capacity at 90°/45° (W x H) - 211 x 112 mm
Cutting Capacity at 90°/90° (W x H) - 303 x110 mm
Cutting Capacity at 90°/90° (W x H) - 345 x 76 mm
Cutting Capacity at 45°/90° (W x H) - 268 x 63 mm
Cutting Capacity at 45°/90° (W x H) - 345 x 44 mm
Cutting Capacity at 90°/45° (W x H) - 244 x 76 mm
Max. Cutting Capacity at 45°/45° - 212 x 76 mm
Supplied with:
Blade
Blade spanner
Dust bag
Material clamp
